Mini 16 heads high speed combination weigher for weighing 2-200g coffee and sugar

Application

Mini 16 heads high speed Combination Weigher Machine  is suitable for weighing small granules such as seeds, tea, coffee beans etc.

Mini 16 heads high speed combination weigher

Features

1. Special load cell with high precision and high standard.

2. Intelligent multi-sampling stable mode, higher accuracy.

3. Intelligent alarm diagnosis.

4. High speed stagger dump function.

5. Modular and CAN bus technology, more efficient and stable.

6. Modbus Industry communication protocol.

Mechanical character

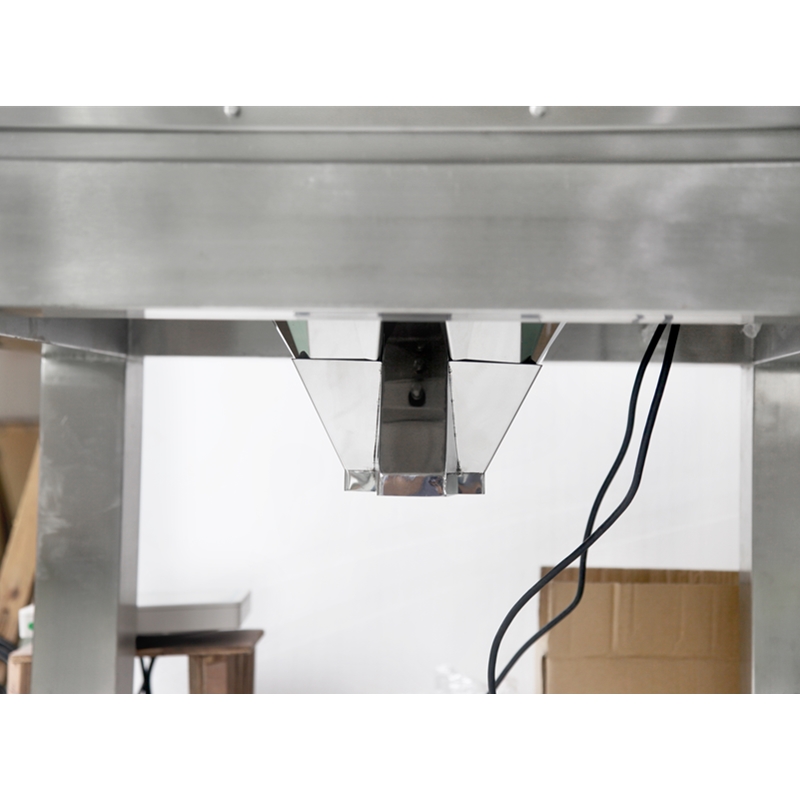

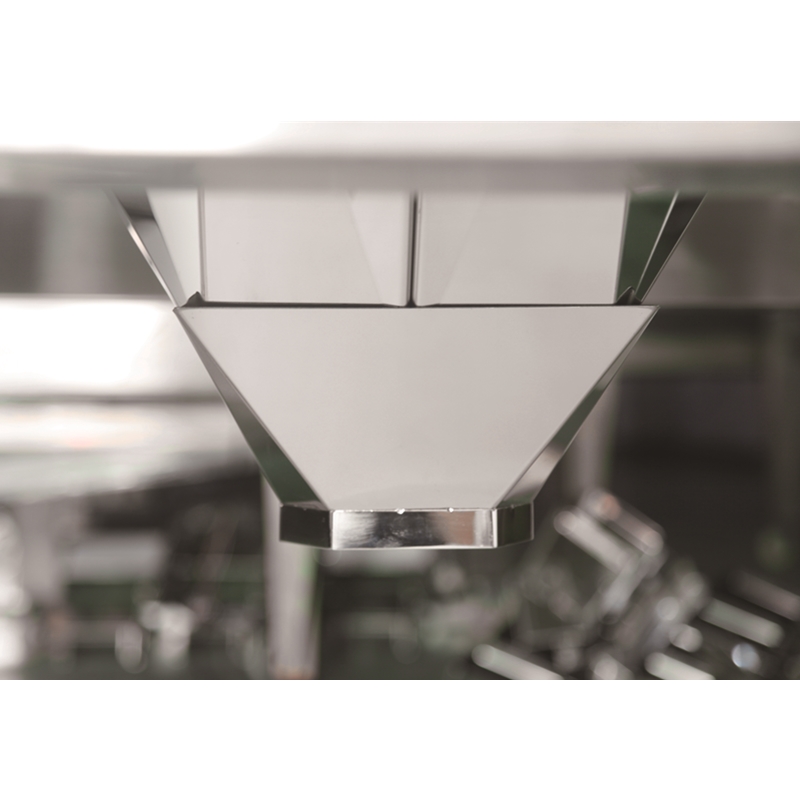

1. Double-layer discharge chute with double high speed timing hoppers feed packaging machines in turn, surmount the speed problems of discharging chute feed time.

2. Arc-shaped machine body with large O treatment improves the stability and appearance

3. Uniform design standards, and mould processing, contribute to better interchangeability for spare parts.

4. Stable actuator design reduce the mechanical vibration and improves the load cell value accuracy.

5. Integral machine frame and machine cabinet contributes to more stability and higher accuracy.

Technical specification

ModelJW-A16
Identify CodeA16-2-7
Weighing Range2-200g
Accuracyx(0.5)
Max Speed180P/M
Hopper Volume0.5L
Control Panel10.1”Touch Screen
OptionsDimple Plate/Timing Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/1500W/50/60Hz/10A

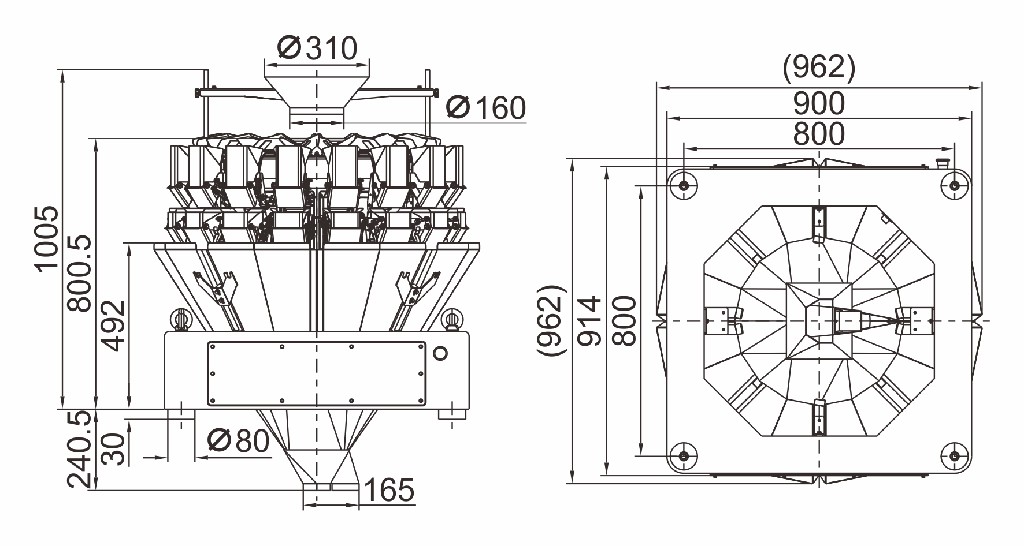

Packing Dimension(mm)1250(L)x1070(W)x960(H)
Gross Weight300kg
