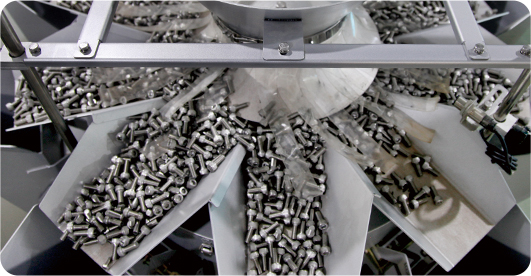

Hardware multihead weigher is suitable for weighing small hardwares and plastic parts, length is less than 80mm, single piece weight is less than 100g.
1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, Support multi-segment weight calibration.
3. No products auto pause function can improve weighing stability and accuracy.
4. Linear amplitude can be adjusted independently, can make the feeding more uniform.
5. 15 languages available for global markets.
6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
1. Special load cell for hardware, has a strong impact resistance.
2. Material contacting parts added anti-noise PVC.
3. Enhanced linear vibrator.
4. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
5. Thicker and stronger buckets be used.
| Model | JW-A10 | JW-A14 |
| Identify Code | A10-1-15 | A14-1-15 |
| Weighing Range | 10-2000g | 10-3000g |
| Accuracy | X(0.5) | X(0.5) |
| Max Speed | 65P/M | 120P/M |
| Hopper Volume | 1.6L | |
| Control Panel | 7”Touch Screen | |
| Options | Timing Hopper/Printer/Reject Device | |
| Driving System | Step Motor | |
| Power Requirement | 220V/1000W/50Hz/60Hz/10A | 220V/1000W/50Hz/60Hz/10A |

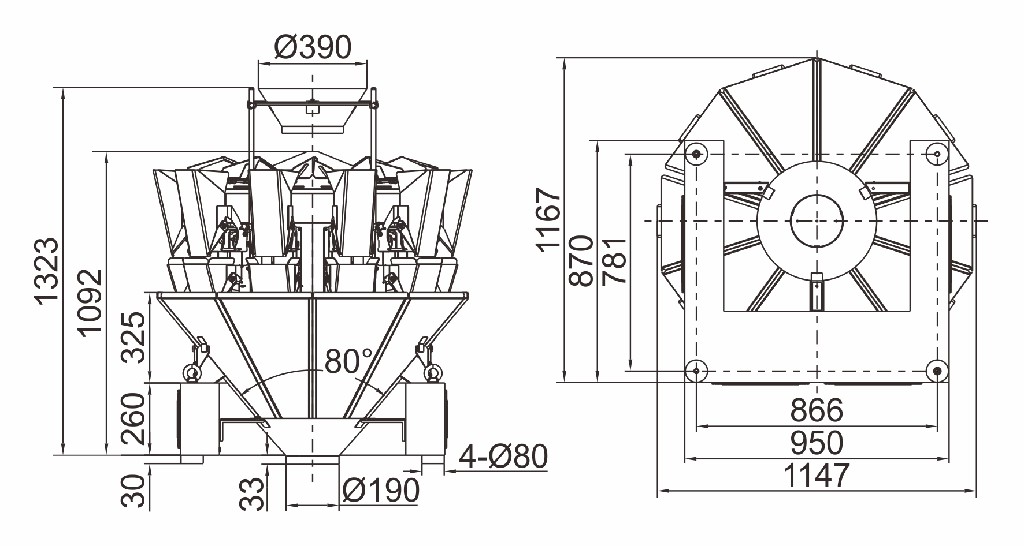

| Packing Dimension(mm) | 1620(L)x1100(W)x1420(H) | 1700(L)x1130(W)x1280(H) |
| Gross Weight | 380kg | 480kg |
