14 head manual weigher is suitable for weighing seafood, aquatic products, meat food, chinese medicinal materials and other poor flowability materials.
1. Manual feeding, automatic weighing, it's suitable for poor flowability material.
2. Optimal combination of weight hopper to meet the target weight optimal combination to automatic feeding.
3. Special load cell with high precision and high standard.
4. With intelligent multiple sampling stable mode, make weighing higher accurate.
5. Intelligent fault alarm, convenient maintenance.
6. High speed staggered discharging function, effectively prevent blocking materials.
7. With high integrated modular design and CAN bus technology.
8. Modbus industry standard communication protocol, realize the interface combination of multihead weigher and packaging machine.
1. The size of the working table is suitable for one person operation,the layout is reasonable.

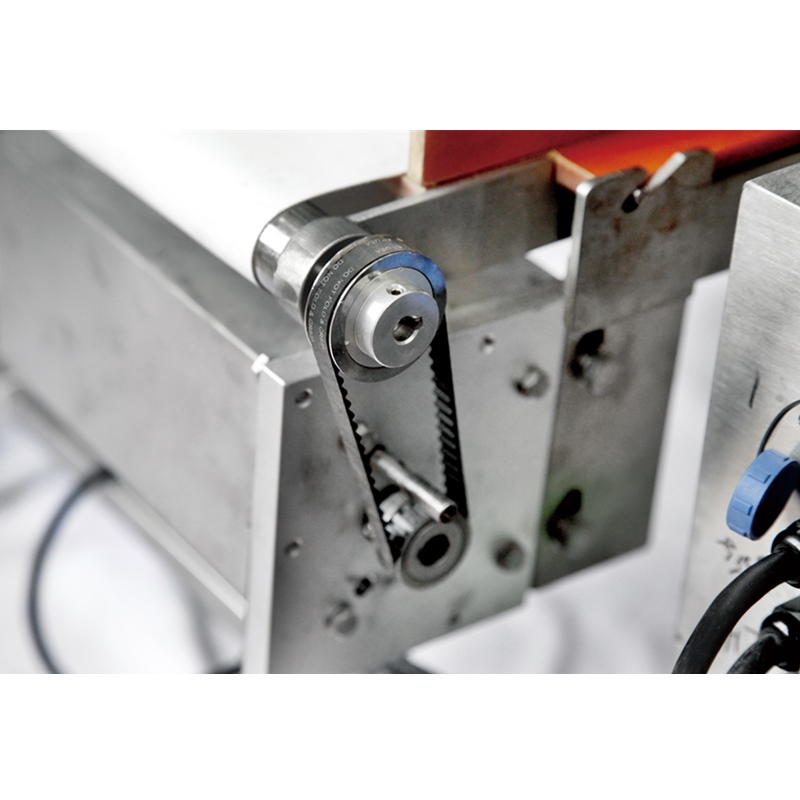

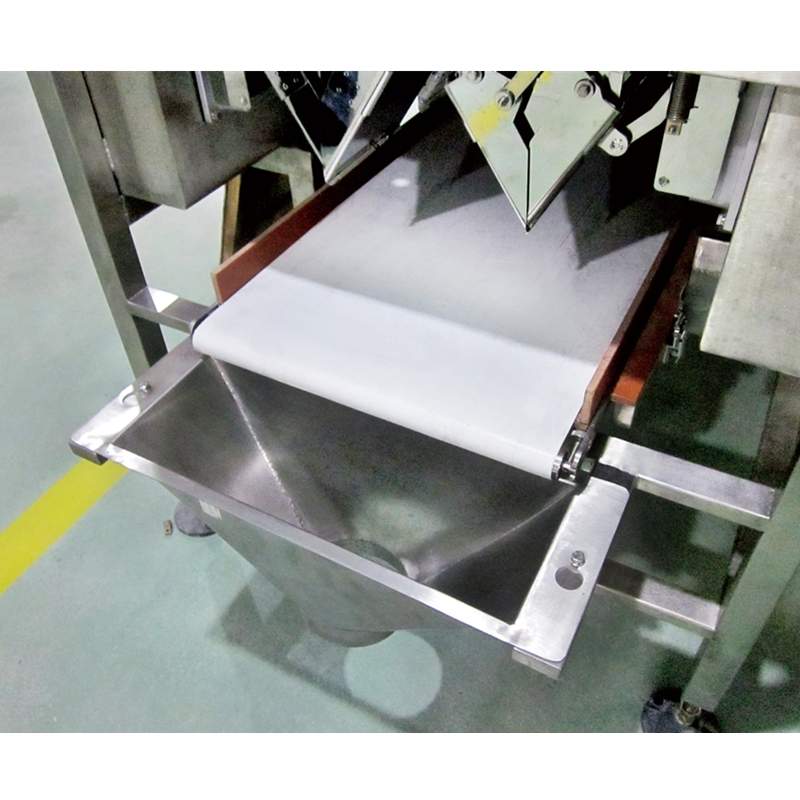

2. Feeding with conveyor belt to avoid sticking material.
3. Easy detachable working table and conveyor belt are easy to clean.

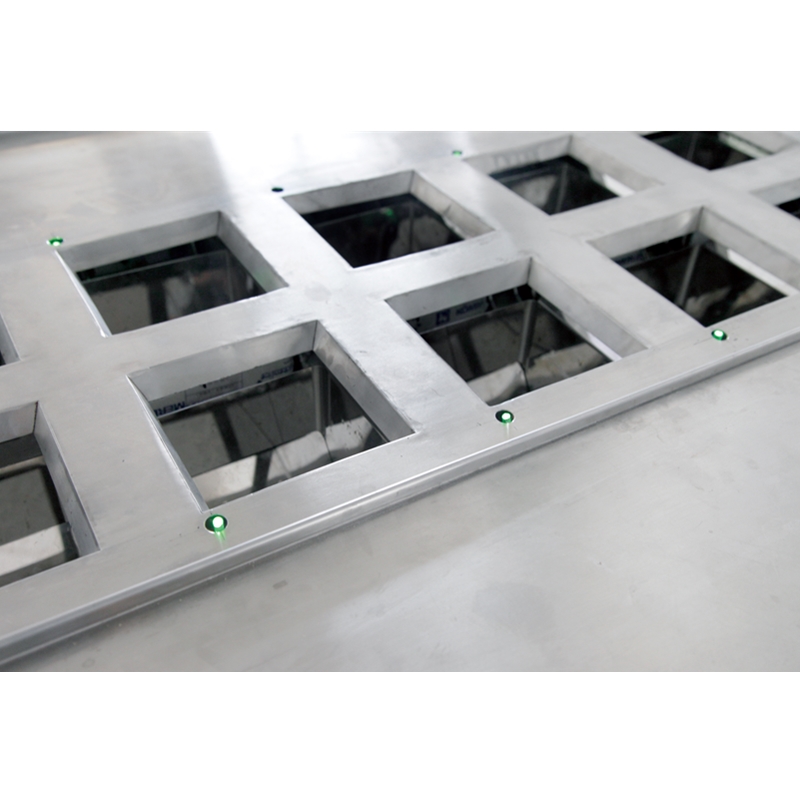

4. With the refraction lamp as the feeding signal, make feeding convenient and accurate.
| Model | JW-A12 | JW-A14 |
| Identify Code | A12-2-4 | A14-2-4 |
| Weighing Range | 50-1000g | 50-1000g |
| Accuracy | X（0.5） | X（0.5） |
| Max Speed | 30P/M | 30P/M |
| Hopper Volume | 3L | |
| Control Panel | 10.1”Touch Screen | |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
| Driving System | Step Motor | |
| Power Requirement | 220V/800W/50/60Hz/3.6A | 220V/800W/50/60Hz/3.6A |

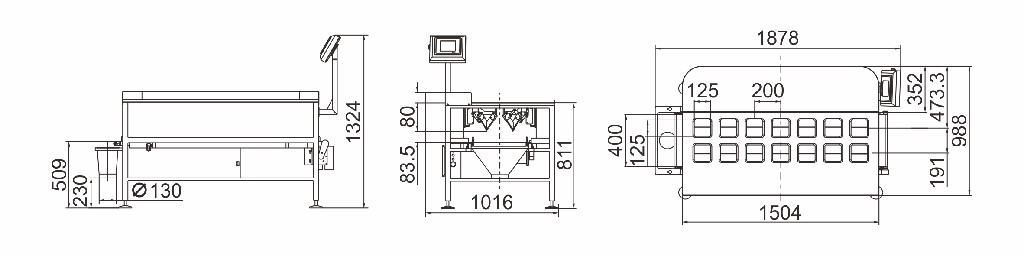

| Packing Dimension(mm) | 1700（L）X1100(W)X900(H) | 1900（L）x1100(W)x900(H) |
| Gross Weight | 220kg | 250kg |
