Application

Horizontal metal detector is widely used for food, pharmaceutical, chemical, textile, clothes, toys, rubber etc. It is the first choice for HACCP of food industry and GMP of pharmaceutical industry,.

Horizontal metal detector

Features

1.32 kinds of languages to choose, 7"standard industrial touch screen, new industry standard.

2.Adopts balance coil theory, signals full cover all the detecting zone, no blind zone.

3.Adopts many digital processing technologies and intelligent algorithm, over all functions, increases detecting sensitivity and stablity.

4.Adopts phase regulation technology to restrain signal interference from products.

5.Digital control mainboard, stable performance, automatical product setup function, visual detecting wave shape, easy to adjust.

6.Large storage space, can save product program and record of produce and alarm etc;

7.Multi-level user administration to avoid unprofessional changes parameters.

8.Stainless steel waterproof design, detachable design for belt, easy to maintain.


Mechanical character

It adopts advanced digital processing technology, can detect both magnetic and nonmagnetic metals in the product. Colorful touch screen is convenient for communication between man and computer.High detecting sensitivity and stablity. Multiple rejecting devices to choose, avoiding situations that metal leaving in the product when producing.


Technical specification

ModelJW-G3012JW-G4015JW-G4025JW-G5020
Identify CodeG3012-1-1G4015-1-1G4025-1-1G5020-1-1
Protection ClassIP54/IP66
Speed30m/min

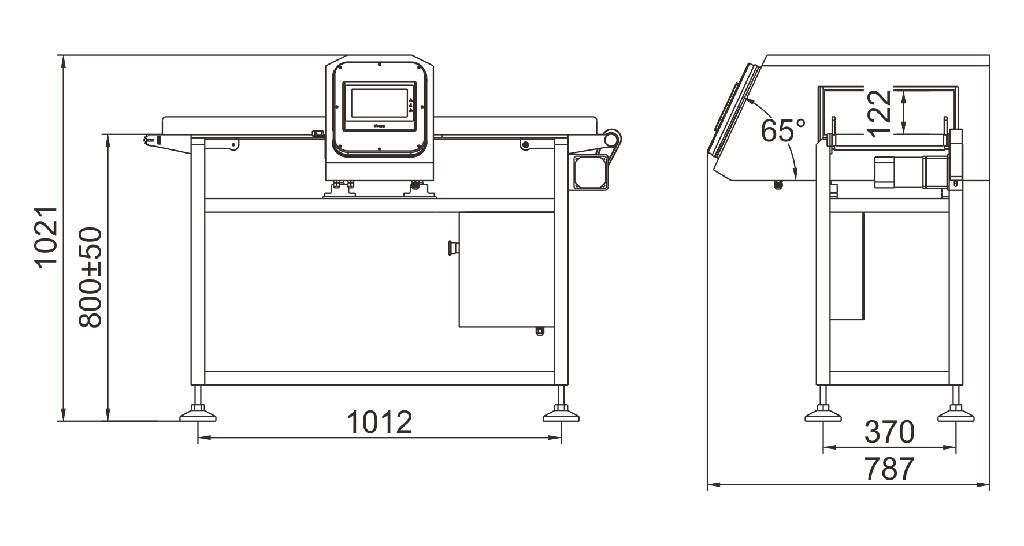

Max Package Size(mm)300(W)x120(H)400(W)x150(H)400(W)x250(H)500(W)x200(H)
Sensitivity(mm)Fe: φ0.8 Sus:φ1.5Fe: φ1.0 Sus:φ2.0Fe: φ1.5 Sus:φ3.0Fe: φ1.2 Sus:φ2.5
Power Requirement220V/180W/50/60HZ/0.8A220V/180W/50/60HZ/0.8A220V/180W/50/60HZ/0.8A220V/220W/50/60HZ/1A
Packing Dimension(mm)1450(L)x890(W)x1080(H)1450(L)x1010(W)x1110(H)1450(L)x1010(W)x1210(H)1450(L)x1110(W)x1160(H)
Gross Weight200kg230kg240kg260kg
